LED Digital Wall

Efficient, reliable and long-lasting video walls


An advertisement is all about creating a remarkable experience for the customer and translating that experience into revenue. No medium is better for that than a LED digital signage platform. Configurable to fit almost any size, shape and curve your business space requires – our LED displays deliver seamless images that captivate and convert browsers into buyers.



Featuring 24/7 operation, high-resolution visuals, modularity, low maintenance requirements, LED- based display technologies are becoming a popular choice for video walls in a variety of settings.

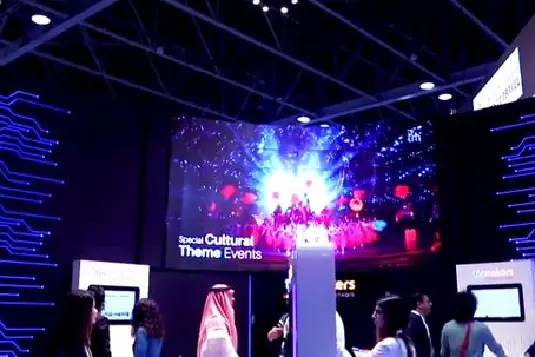

From architectural and digital signage displays to entertainment venues and critical viewing control room environments, video walls using LED-based displays, have proven to be an ideal choice for impact full and engaging digital displays.



Excellent image quality, durability and reliability mark the beginning of a new generation of digital signage. These display products include the latest technical advantages that only LED technology can deliver.

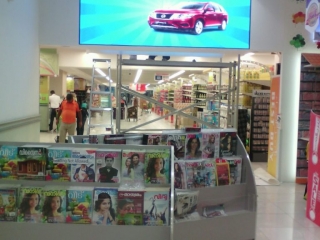

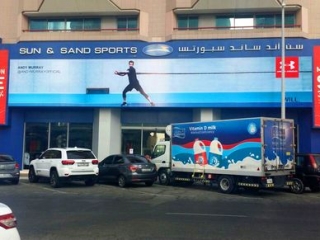

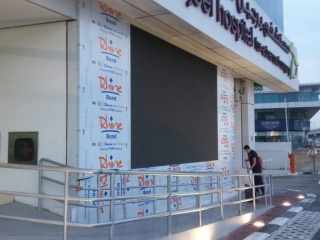

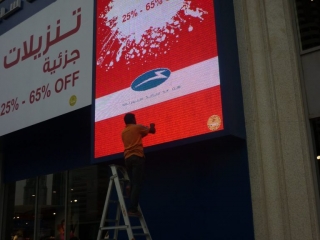

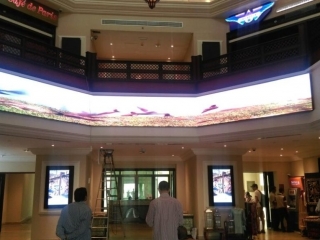

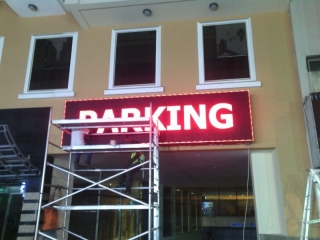

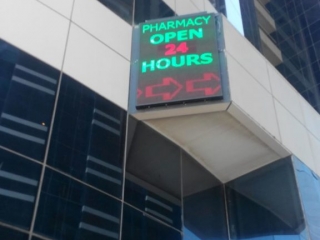

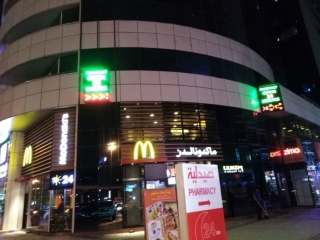

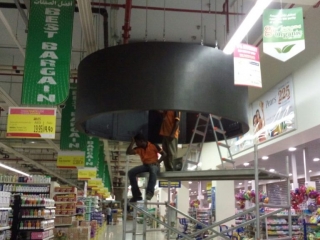

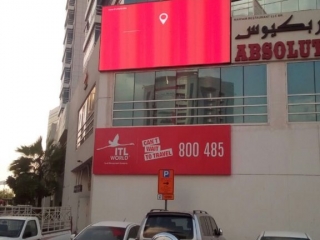

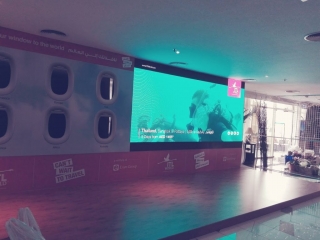

At SADAF we do customized LED digital walls, be it indoor or outdoor. Cladding is done around or beside the LED panels to adjust the space availability. Upon knowing your requirement, our expert team would visit site to review on the environment and provide our best proposal including the pixels required. Pitch of the LED is chosen based on the viewing distance.



Indoor – P6 and P3 Pixel Pitch(mm)
Outdoor – P10 and P6 Pixel

p10 outdoor Specification

Item

Value

Pixel Pitch(mm)

10

Pixel Density(pixels/m2)

10000

LED Encapsulation

SMD3535

Best Viewing Distance(m)

10

Panel Dimension(mm)

960(W)*960(H)*102(D)

Panel Size(m2)

0.9216

Panel Resolution(pixels)

96*96

Panel Material

Die-Casting Magnesium Alloy

Panel Weight(kg)

24kg

Protection Grade(Front/Rear)

IP65/IP54

Max Power Consumption(w/m2)

830

Ave Power Consumption(w/m2)

400

Viewing Angle(Deg.)

Horizontal:140° Vertical:140°

Brightness(nits)

6500

Brightness Adjustment

Manual / Auto / Programmable

Gray Level(bit)

16

Refresh Rate(Hz)

1920

Module Size(mm)

320*160

Module Resolution(pixels)

32*16

Driver IC

MBI5124 / ICN2038 High Refresh IC

Driver Mode

1/2 scan

Lifespan(hours)

100,000

Operating Temp/Humidity(℃/%RH)

-20℃~+50℃/10~90%RH

Input Voltage(V)

AC100-240 (50/60Hz)

p6 Specification

Item

Value

Pixel Pitch(mm)

6.66

Pixel Density(pixels/m2)

22500

LED Encapsulation

SMD3535

Best Viewing Distance(m)

6

Panel Dimension(mm)

960(W)*960(H)*145(D)

Panel Size(m2)

0.922

Panel Resolution(pixels)

144*144

Panel Material

Print Coated Iron

Panel Weight(kg)

42kg

Protection Grade(Front/Rear)

IP65/IP54

Max Power Consumption(w/m2)

530

Ave Power Consumption(w/m2)

250

Viewing Angle(Deg.)

Horizontal:140° Vertical:140°

Brightness(nits)

6000

Brightness Adjustment

Manual / Auto / Programmable

Gray Level(bit)

16

Refresh Rate(Hz)

1920

Module Size(mm)

320*160

Module Resolution(pixels)

48*24

Driver IC

MBI5124 / ICN2038 High Refresh IC

Driver Mode

1/6 scan

Lifespan(hours)

100,000

Operating Temp/Humidity(℃/%RH)

-20℃~+50℃/10~90%RH

Input Voltage(V)

AC100-240 (50/60Hz)
